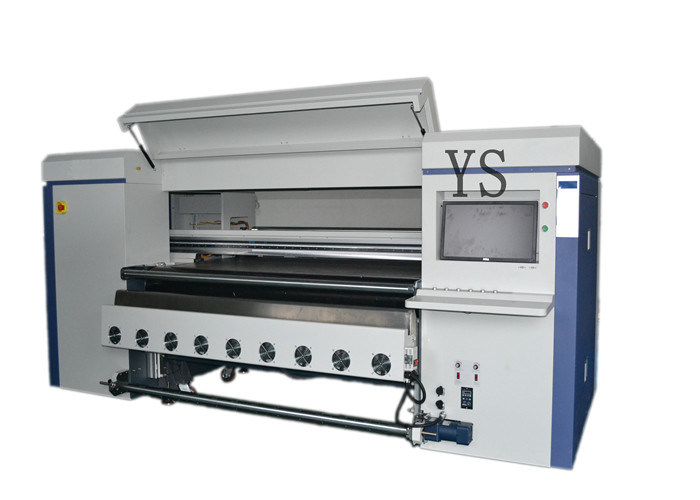

High speed 180m2 / h Inkjet Digital Textile Printing machine 8 Heads With Belt System

High speed 180m2 / h Inkjet Digital Textile Printing machine 8 Heads With Belt System

    • High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System
    • High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System
    • High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System
    • High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System
    • High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System
  • High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System

    Product Details:

    Place of Origin: China
    Brand Name: YISHENG
    Certification: ISO , CE
    Model Number: YS1800/3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Printhead: 8 Heads Epson Dx5 / 5113 Print Speed: 120-180 Sqm /hour In 4 Pass
    Ink: Pigment,reactive ,disperse,acid Fabric Feeding: Automatic Feeding And Rolling
    Rip Software: Noestampa / Wasatch Dryer: Three Units Drying System
    Nozzles: 1440 Weight: 2000kg
    Printer Size: 3600L*2000W*1600mmH Belt Wash: Automatic Belt Wash System



    High speed 120m2 / h Inkjet Digital Textile Printer 8 Heads With Belt System





    Advantage:

    • stable printing  ,print direct on fabrics.
    • low investment :$14,800-50,000usd





    1. Speed:120m2/h,output:1000-1500m/day



    High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System




    2)  2.  Main parts  :

    1.  Printhead:Epson dx5 / 5113
    2. Rip software:Noestampa
    3. German speed reducer,Japan Panasonic servo motor
    4. Blanket: Habasit industrial belt.Origin from Swiss Habasit.
    5. Head moving guider :Germany




    3. Applications :

    Clothes,cushion,curtain,beding sheet etc.

    High speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt SystemHigh speed 180m2 / h Inkjet  Digital Textile Printing machine  8 Heads With Belt System





     4. Technical parameter:




    Product mode EPSON
    Print head 8 DX5   / 5113
    Max.Resolution 1440 dpi
    Min.droplet size 4.2 pl
    Height adjustable 2-30mm adjustable
    Ink Type reactive , disperse ,acid ink or pigment ink
    Ink color Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray
    Fabric types woven and kinitted cotton,linen,silk,wool,poly,nylon tec.
    Max print width 1850/2500/3250mm
    Fabric feeding Belt syterm,patented conveyor roll to roll media feeding,automatic take -up system
    Stand 4 pass 120-180m2/hour
    Working temperature 15-35℃(20 to32℃ recommend)
    Working Humidity 20-80%(60-80% recommed)
    Rip software neostampa
    System WindowXP,VISTA,WINDOWS7(recommend)
    Additional three units drying system
    weight 1400kgs
    Compressed air connection 0.3m3/min,6kg
    Power supply single AC+ground 220V±10%
    Power no more than 14kw
    Machine size 3600L*2000W*1600mmH





    5. Ink type:

    • Acid inks :on polyamide lycra, wool, silk
    • Pigment ink :any kind of fabric
    • Disperse inks: directly onto polyester and blends
    • Reactive inks: on all natural fibers such as cotton,silk,wool,etc




    6. Printing processing:

    • Reactive ink: coating--digital printing --steaming--washing—drying
    • Dispers ink: coating--digital printing --steaming--washing--drying
    • Pigment ink: coating---digital printing—drying





    7. Our product list:

    •      Kyocera
    •      starfire 1024)
    •      Ricoh Gen5
    •      Epson print head DX5 ,5113




    8. Machine width available:



       1.8m  /  2.2m  /  2.6m  /  3.2m







    Vidoe youtube:



       1)DX5 4 heads introduce :https://youtu.be/LLP4SnbAtbg
       2)Ricoh Gen5 : https://youtu.be/VFa-ayJ8Jyk
