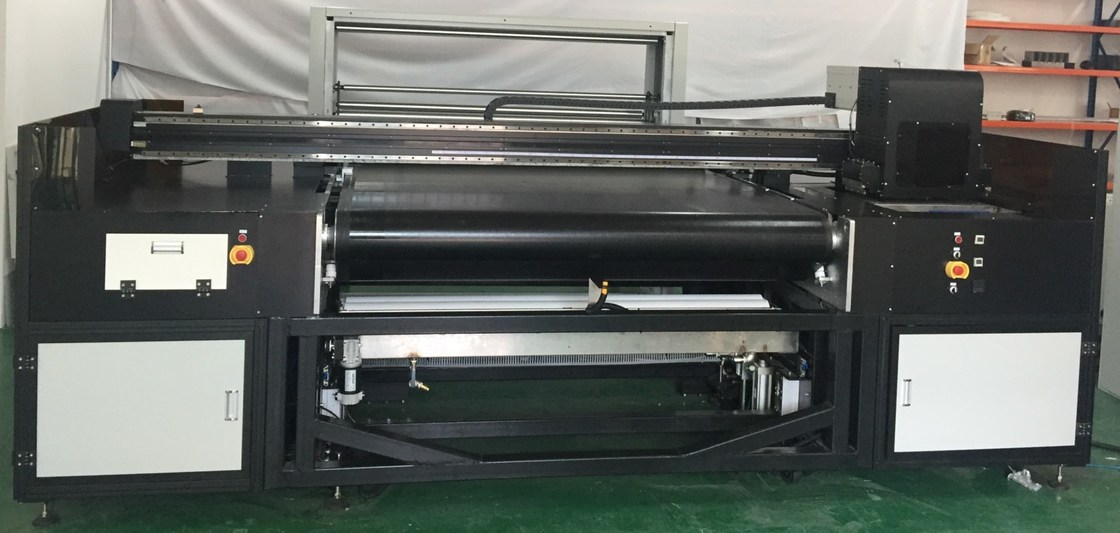

Rioch Gen5 Flatbed High Speed Digital Textile Printing Machine With Belt 120m2 Per Hour

Rioch Gen5 Flatbed High Speed Digital Textile Printing Machine With Belt 120m2 Per Hour

Rioch Gen5 Flatbed High Speed Digital Textile Printing Machine With Belt 120m2 Per Hour

Product Details:

Certification: ISO ,CE
Model Number: YS1800/3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in wooden case
Delivery Time: 20 working days after received deposit
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Print Head: Ricoh Gen5 Max Fabric Width: 1830mm
Max. Printing Speed: 100-120m2/hour Drop Size: 7pl,14pl.21pl,28pl
Ink Type: Reactive , Disperse ,acid Or Pigment Drying Way: Aluminum Foil Heater,infrared Heater And Hot Fan Heater
Fabric Feeder&take Up: Automatic Rolling And Taking Up Printhead Cleaning: Positive Pressure Cleaning And Sweeping Systerm
Power Consumption: Printer 10kw,dryer 20kw Compressed Air: 0.6m3/min,≧0.7mpa
High Light:

automatic textile printing machine


digital printer on fabric

Rioch Gen5 Flatbed High Speed Digital Fabric Printer d with belt 120m2 per hour




A. Technical paremeter:


1. Type:Digital Printer for textile reactive / disperse/ pigment

2. Automatic Grade:Automatic

3. Plate Type:Flatbed Printer / roll to roll printer

4. Max.printing width:1800mm

5. Print thickness: 0-30mm

6. Fabric available:cotton,polyester,silk ,wool ,carpet,etc.

7. Print software:neostampa

8. printing resolution:1200*1200dpi

9. Print speed:120m2/hour

10. Ink type:reactive,disperse or acid ink

11. Print color:C,M,Y,K,LC,LM,orange,grey,and more

12 Ink supply system:peristaltic pump supply,degassing NEG pressure system

13. Dry unit:Aluminum foil heater,infrared heater and hot fan heater

14. Print head clean system:positive pressure and wiper

15. Power voltage:380v,3-phase-4-wire+G



B. Applications:

rug piece / footcloth /hometextile / towel roll // carpet

C. Ink Available:


1.Disperse inks to print directly poly
2.Reactive ink Cotton,linen,silk,ect nature fiber


D. D. Feature:

  • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
  • Ink supply:peristaltic pump supply,degassing NEG pressure system.
  • Transducer & photoelectric sensor system, while fabric not flat or upwarp ,it will alarm,and printhead will stop working.One set of this system installed beside belt,another one beside printhead.


E. Produce processing:


Rioch Gen5 Flatbed High Speed Digital Textile Printing Machine With Belt 120m2 Per Hour






1. What kind of fabric can be printed on this machine?

Cotton, poly,silk,linen,nylon,wool,etc.


2. Use what kind of ink?

Water based ink. color fastness:5 level.


3. ink are available for what kind of fabric?


1. Reactive inks – to print on all natural fibers such as cotton,silk,wool,etc

2.. Disperse inks – to print directly onto polyester and blends

3. Pigment inks- to print any kind of fabric


4. How much ink cost per square meter?

Normally it cost $0.23-$0.34 per square meter.Dpend on the design and thickness of cloth.


5. How many specification our factory produce?


------3 kinds of printhead:

1) Kyocera (Japan),

2) SG(starfire 1024)

3) Epson DX5,DX7

-----machine width:

1) 1.8m

2) 3.2m

Kyocera is more high resolution than SG.it’s depend on the level you can accept for your design.


6. Does the belt need to washing?

It has washing systerm ,washing while printing.


7. how is the produce processing?

Coating--printing---washing--steaming-drying and shaping

Poly can be print directly on the fabric,then use heat transfer to develop the color to be more shinning.



8. How many operators for one set machine?

Need two persons.


9. Does print head need to washing?

It automatic self-washing.


10.What about printer guarrantee:

One year guarantee for machine
