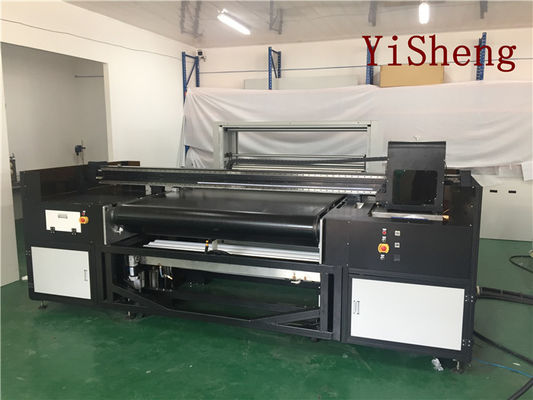

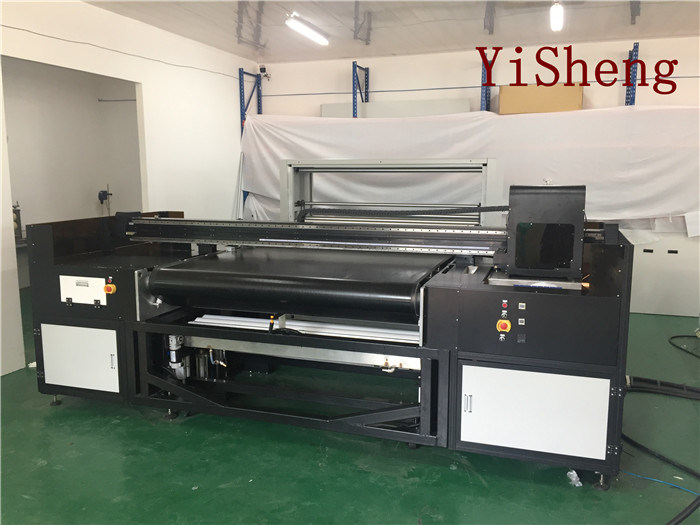

Name: Industrial Print Head High Speed Digital Fabric Printer direct print on fabric with belt
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
SKU: YS1808 / YS1816
Price: 40,000.00 USD
Availability: InStock

Home Products High Speed Digital Textile Printing Machine

Industrial Print Head High Speed Digital Fabric Printer direct print on fabric with belt

Product Details:

Certification:	ISO / CE
Model Number:	YS1808 / YS1816

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	wooden case
Delivery Time:	45 working days after received deposit
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Printer Speed:	120-240m2/hour	Fabric Transport:	Belt System Automatic Washing And Drying
Print Head Warrantee:	2 Years	Color:	4- 8 Colors
Head Clean System:	Automatic Systerm,Positive Pressure And Wiper	Rip:	Neostampa / Texprint
Machine Width:	180cm	Machine Weight:	4200KG
CBM:	1*40'' FCL
Highlight:	digital printer on fabric , digital textile printer machine

High Speed Digital Fabric Printer direct print on fabric with 2 year guarantee

Industrial Print Head High Speed Digital Fabric Printer direct print on fabric with belt

Advantage:

Stable printer:unattended printing
High speed: 1500-2000m per day
Low printing cost:90kg can print 10,000meters fabric
Low investment:min. $45000.00 to $78000.00

1) Technical data

Product mode			YSR1808 / YS1816
Print head			8-16pcs Ricoh Gen5E print head
Fabric conveyance mode			Adhesive belt with cleaning and heating system
Maximum printing width			1800mm
Maximum printing resolution			1200DPI
	2 pass		110-120m2/h
Speed	3 pass		70-80m2/ h
	4 pass		55-60m2/h
Print software			Neostampa / Texprint (origin)
Printing part introduction			Auto negative pressure ink supply,auto up & down of carriage,auto print head clean,auto print head capping
Belt system introduction			Auto dry & take-up system,auto belt cleaning system,no roll seal on fabric(roller fore and aft moving)
Dryer unit			Aluminum foil heater,infrared heater and hot wind
Ink Type			reactive , disperse or acid ink,pigment
Ink color			Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray
Interface			GBE,Optical fiber
Print head height			Height adjustable1.5～30mm) to adapt medium of different thickness
Power voltage			380V,3L+N+G(with independent reliable effective earth wire)
Power frequency			50H_Z/60H_Z ±1H_Z
Power consumption			printer 10kw,dyer 16kw
		Printer	425022001950mm (L* W* H)
		Dryer	270022002300mm
Size		Ink cabinet	19007001000mm
		Fabric feeder(optional)	258012001950mm
Weight			G.W:4800kg N.W.:4200KG

2) Main feature:

Printing width from1800mm
From 7 to 35 pl drop size
Auto printhead capping
Auto negative pressure ink supply
Auto dry and take-up system
Auto feeding adjustment system
Auto belt cleaning system
Print height from1.5mm to 3 mm automatic adjustment
With belt systemAuto up and down of carriage
Auto printhead cleaning

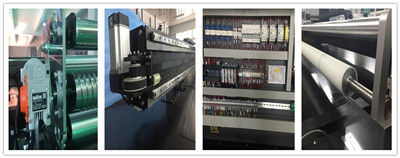

3) Main parts :

Fabric transportation: Habasit industrial belt.Origin from Swiss Habasit.
Software:TEXPRINT / Nostampa
Japan Panasonic servo motor & German speed reducer.
Printhead moving guider :Germany

Industrial Print Head High Speed Digital Fabric Printer direct print on fabric with belt

4) Printing processing:

Reactive ink: precoating--digital printing --steaming--washing—drying
Pigment ink: precoating---digital printing—drying
Dispers ink: pretreatment--digital printing --steaming--washing--drying

5) Ink type:

Disperse inks: polyester and blends
Acid inks : polyamide lycra, wool, silk
Pigment ink :any kind of fabric
Reactive inks: cotton,silk,wool,all natural fibers

6) Wuarantee:

1 year for machine,2 years for pritnhead ,including install,testing and training in your factory.

Contact:

.Flora whatsapp :0086-18957161033 wechat: 0086-18957161033

Vidoe youtube:

1)DX5 introduce :https://youtu.be/LLP4SnbAtbg

2)Ricoh Gen5 : https://youtu.be/VFa-ayJ8Jyk

Tag:

digital printer on fabric,

digital textile printer machine
