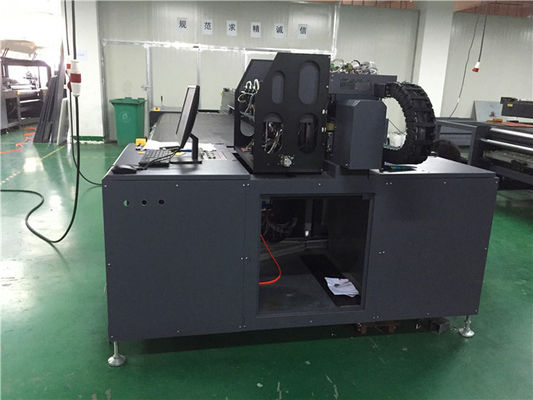

2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi

2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi

    • 2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi
    • 2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi
  • 2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi

    Product Details:

    Certification: ISO
    Model Number: YS1800/3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Printer Head: 16pcs Starfire 1024 Drop Size: 10 Pl ,20pl
    Print Model &Speed: 1 Pass 600m2/h Print Resolution: 800*1200 Dpi
    Fabric Thickness: Max.fabric 25mm Thickness Picture Format: TIFF,JPG.EPS,PDF Etc.
    Certificate: CE,ISO Rig Software: Neostampa/ Texprint
    Application: Hometextile,beding,curtain,carpet
    High Light:

    digital fabric printer machine

    ,

    inkjet fabric printer

    2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi



    2.2m carpet / rug / footcloth digital fabric printing machine 600 m2 / hour




    Feature:

    1. Printhead life:3-5 years.
    2. High speed: 600sqm /hour
    3. Roll to roll printer
    4. Day output:2500m/day


    A. Main specifications:


    1. Type:Digital Printer for textile
    2. Automatic Grade:Automatic
    3. Plate Type:Flatbed Printer
    4. Usage:Cloths Printer
    5. print head: a. Kyocera (Japan) ;b. SG(America) c. Ricoh
    6. Print speed:110-270m2/hour
    7. Ink type:reactive,disperse or acid ink
    8. Print color:C,M,Y,K,LC,LM,orange,grey,and more
    9. fabric available:cotton,polyester,silk ,wool ,carpet,etc.
    10. Print software:Texprint
    11. Max.printing width:1800mm-3200mm
    12. Print thickness: 0-50mm
    13. Ink supply system:peristaltic pump supply,degassing NEG pressure system
    14. Dry unit:Aluminum foil heater,infrared heater and hot fan heater
    15. printing resolution:800*1200dpi
    16. Power consumption:printer:12kw,dryer 30kw
    17. Print head clean system:positive pressure and wiper
    18. Power voltage:380v,3-phase-4-wire





    B. Description:



    1) Print sample:

    hometextile,carpet,curtain,sofa fabric.


        2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi



        2) Main parts & systerm:

    • Printhead:starifire 1024
    • Rip Software:Texprint / neostampa
    • Servo motor Japan Panasonic& Germany speed reducer  .
    • Fabric transportation:  SwissHabasit industrial belt.
    • Germany printhead moving guider .
    • Machine body ,operating platform
    • Printing control and operating system
    • Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt, another one beside printhead.
    • Belt-transporting system, integrated fabric feeding & take-up system,fabric spreading , fabric entry unit.
    • Belt cleaning system: Auto brush & sponge-roller washing system belt wiping system.

    2.2 m Digital Fabric Printing Machine For Carpet / Footcloth 800 * 1200 Dpi




    C. Client satisfaction



    We follow a client-centric approach in our organization. Our organization leaves no stone unturned in effectively meeting the individual requirements raised by the clients. Owing to our wide range of quality-approved machinery, we have been able to hold a reputed place in the domestic market.





    D. Quality:



    1. · Operating speed
    2. · Performing ability
    3. · Power consumption
    4. · Mechanical, electrical and physical aspects
    5. · Temperature and pressure withstanding ability
    6. · Low cost of maintenance
