Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead

Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead

    • Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead
    • Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead
    • Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead
    • Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead
  • Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead

    Product Details:

    Place of Origin: China
    Brand Name: YISHENG
    Certification: ISO ,CE
    Model Number: YS1800/3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 10 sets per month
    Detailed Product Description
    Print Head: 4~8 Kyocera KJ4B-QA06 (optional) Fabric Width: 1830mm
    Max. Printing Speed: 250m2/hour Drop Size: 5.7.12.18pl
    Ink Type: Reactive , Disperse ,acid Or Pigment Drying Way: Aluminum Foil Heater,infrared Heater And Hot Fan Heater
    Fabric Feeder&take Up: Automatic Rolling And Taking Up Printhead Cleaning: Positive Pressure Cleaning And Sweeping Systerm
    Power Consumption: Printer 10kw,dryer 20kw Compressed Air: 0.6m3/min,≧0.7mpa



    Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead

    Flatbed 1.8m cotton digital textile printer with 4 to 8 kyocera printhead









    Main feature:

    • Print speed:250sqm/h
    • Fabric max.width 1800mm -3200mm
    • Fabric type:all kind of natural fiber,synthetic fiber,etc.
    • Ink available:reactive,disperse,acid,pigment



    Technical parameter:



    Product mode TLDP-k1800
    Maximum printing width 1800mm
    Medium conveyance mode Guide belt conveyance
    Maximum printing resolution 1200DPI*1200DPI
    Speed 1 pass 180-250 m2/h
    2 pass 90-120m2/h
    3 pass 55-85m2/h
    Print software Neostampa/Texprint (origin)
    Ink supply system Peristaltic pump supply,degassing NEG pressure system
    Dryer unit Aluminum foil heater,infrared heater and hot fan heater
    Ink color Cyan,Magenta,Yellow,Black,Orange, Red,Blue, Gray
    Print head height Height adjustable(0~50mm) to adapt medium of different thickness
    Print head clean system Positive pressure and wiper
    Power voltage 380V,3-phase-4-wire+G(with independent reliable effective earth wire)
    Power frequency 50HZ/60HZ ±1HZ
    Power consumption Printer 10kw,dryer 20kw
    Printer 4810*2270*2100mm
    Dryer unit 2450*960*1650mm
    Ink box 1280*730*1250mm
    Gross weight 4620kg
    loading  one 40 feet container





    Description of printer:



    1) Printhead:



    Printhead: kyocera (Japan original) 4-8pcs,

    First time buy 4 heads,later you can add 2 or 4heads in the same machine,just add

    heads charges.





    3)  2) Print mode and speed:



    2 pass 135m2/hour, 600*1200 dpi

    3 pass 72m2/hour, 600*1800 dpi

    4 pass 54m2/hour, 1200*1200 dpi





    3) Inks are available for three chemistries:



          --. Reactive inks –  suitable for natural fibers such as cotton,silk,wool,etc

          -- Acid inks – suitable for polyamide lycra, wool, silk

          -- Disperse inks –  suitable for polyester and blends

    ---  -- Pigment - suitable for all kind of fabric

    --



    4) Main parts imported :

    •  Printhead:Kyocera  Japan
    • Japan Panasonic servo motor & German speed reducer.
    • Fabric transportation: Habasit industrial belt.Origin from Swiss Habasit.
    • Printhead moving guider :Germany
    • Software:TEXPRINT (original) which is widely used in the digital printing industry,  and authoritatively in the world.Because of

            (1) Quickly and accurately parse image

            (2) high color reduction degree,99.99%same as photo

            (3) save ink ( ink consume 10-12g/m2 )





    5) Twenty five years in automatic control systerm:



    • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
    • Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt,another one beside printhead.
    • operating platform
    • Printing control and operating system
    • Electric systerm

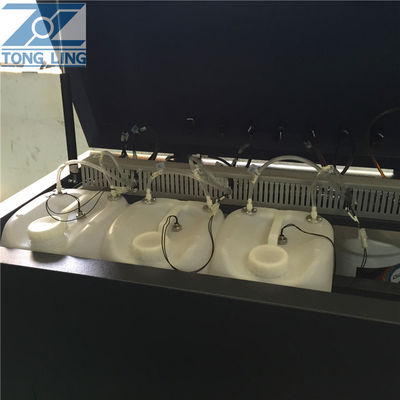

    • Ink supply system:peristaltic pump supply,degassing NEG pressure system.
    • Belt-transporting system,integrated fabric feeding & take-up system,fabric spreading , fabric entry unit.


    Produce processing:



    Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead





    Print applications products:



    Clothes, scarf, cushion, curtain, sofa fabric etc.

    Flatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera PrintheadFlatbed 1.8 m Cotton Digital Textile Printer With 4 - 8 Kyocera Printhead
