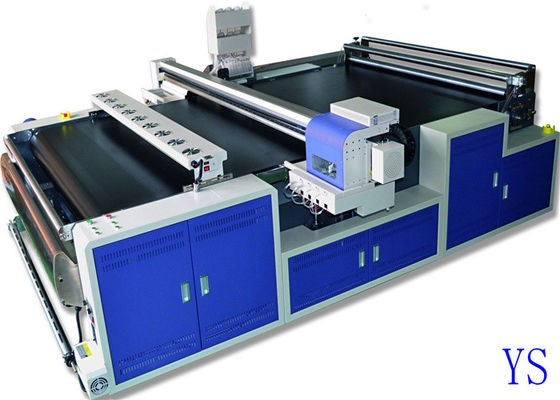

High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing

High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing

    • High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
    • High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
    • High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
  • High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing

    Product Details:

    Certification: ISO
    Model Number: YS1800E-4flat form

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Printer Head: EPSON DX5 Or 5113 Scarf Max.width: 1.8m
    Print Model &Speed: 60m2/hour Print Resolution: 800*1200 Dpi
    Scarf Thickness: Max.fabric 20mm Thickness Image Format: TIFF,JPG.EPS,PDF Etc.
    Service: Engineer Avaiable To Overseas Rig Software: Texprint / Neostampa
    Suitable: Cutting Pieces
    High Light:

    large format digital printer

    ,

    industrial digital printing machines



    High Resolution Digital Textile Printer With Belt 1440 dpi Roll To Roll Printing




    Feature of this machine:



    • Large format for beding ,curtain: 3.2m
    • 24 hours running
    • Direct printing,roll to roll
    • Reacive ,disperse ,Pigment ink availble

    A. Main specifications:



    Product mode EPSON FLAT FORM
    Print head 4 DX5 / 5113
    Max.Resolution 1440 dpi
    Min.droplet size 4.2 pl
    Height adjustable 2-30mm adjustable
    Ink Type reactive , disperse ,acid ink or pigment ink
    Ink color Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray
    Fabric types woven and kinitted cotton,linen,silk,wool,poly,nylon tec.
    Max print width 3200mm
    Standard 4pass 80m2/hour
    High 6pass 55m2/hour
    High 8pass 40m2/hour
    Rip software Noestampa / wasatch
    System WindowXP,VISTA,WINDOWS7(recommend)
    Fabric feeding patented conveyor roll to roll media feeding,automatic take -up system
    Image type JPEG/TIFF/BMP,RGB/CMYK
    Working temperature 15-35℃(20 to32℃ recommend)
    Working Humidity 20-80%(60-80% recommed)
    Additional three units drying system
    weight 1250kgs
    Compressed air connection 0.3m3/min,6kg
    Power supply single AC+ground 220V±10%
    Power no more than 7kw
    Machine size 3600L*2000W*1600mmH



    B. Description:

    1) Functions:


    1.  Separate electric control cabinet
    2.  Bianco fabric feeder & Driver (optional)
    3.  Super dryer (optional)
    4. Separate ink supply system
    5. Degassing system reduces print head clogging
    6. Variable drop size (10-30pl) gives perfect clarity

    2) Performance: carpet,curtain,sofa fabric,hometextile

    High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll PrintingHigh Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing





         3) Main parts & systerm:


    • Servo motor Japan Panasonic& speed reducer German .
    • Fabric transportation:  SwissHabasit industrial belt.
    • Germany printhead moving guider .
    • Machine body ,operating platform
    • Printing control and operating system
    • Ink supply system
    • Belt cleaning systerm
    • Fabric feeding and taking up systerm
    • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
    • Ink supply:peristaltic pump supply,degassing NEG pressure system




    C. Packing:
    High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll PrintingHigh Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing



    D. Service:


    1) Quality Guarantee:

     The whole set of machine guarantee is 1 year. The print head is half year.We offer flexible extended
     warranties if needed.

    2) Installation training service:

    We dispatch technician to your factory for installation ,testing and training.



    E. Enviroment request:


    Temperature is  15~30 ℃ and Humidity at 50%~70%.
