Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw

Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw

    • Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw
    • Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw
    • Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw
  • Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw

    Product Details:

    Certification: ISO ,CE
    Model Number: YS1800/3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Print Head: 8 Kyocera Print Head(optional) Maximum Fabric Width: 1830mm
    Maximum Printing Speed: 270m2/hour Ink Supply System: Peristaltic Pump Supply,degassing NEG Pressure System
    Ink Type: Reactive , Disperse ,acid Or Pigment Drying Way: Aluminum Foil Heater,infrared Heater And Hot Fan Heater
    Fabric Feeder&take Up: Automatic Rolling And Taking Up Power Consumption: Printer 10kw, Dryer 20kw
    Belt Cleaning System: Auto Brush & Sponge-roller Washing System Production Parameters: 20-25degree,humidity 60%-80%
    High Light:

    textile printer machine

    ,

    flatbed textile printing machine



    Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw

    High Speed Industrial Belt Transmission digital textile Printer





    Main feature:

    • Printer with industrial Kyocera kj4b print head
    • Upgraded rear feeding & taking up device,intelligent &convenient
    • Top-level configuration ink supplying system
    • Intelligent inspection function of the ink state
    • Muti-options for inks
    •

      Print speed

      1 pass 180-250 m2/hour
      2 pass 90-120m2/hour





    Technical parameter:



    Maximum printing resolution

    1200DPI*1200DPI

    Maximum printing speed

    260m2/h

    Ink supply system

    Peristaltic pump supply,degassing NEG pressure system

    Ink color

    Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray

    Dryer unit

    Aluminum foil heater,infrared heater and hot fan heater

    After sales service

    Engineer available to overseas

    Power frequency

    50HZ/60HZ ±1HZ

    Power consumption

    Printer  10kw,dryer 20kw









    Description of printer:



    --



        1) Print speed:

    •     2 pass  135m2/hour, 600*1200 dpi
    •     3 pass  72m2/hour,  600*1800 dpi
    •     4 pass  54m2/hour, 1200*1200 dpi



    2) Main parts are imported :

    •  Printhead:Kyocera  Japan
    • Software:TEXPRINT (original) which is widely used in the digital printing industry,  and authoritatively in the world.
    • Japan Panasonic servo motor & German speed reducer.
    • Fabric transportation: Habasit industrial belt.Origin from Swiss Habasit.
    • Printhead moving guider :Germany

    3) Printhead:



    Printhead: kyocera (Japan original) 4-8pcs,

    First time buy 4 heads,later you can add 2 or 4heads in the same machine,just add

    heads charges.



    4) main system :

    • operating platform
    • Ink supply system:peristaltic pump supply,degassing NEG pressure system.
    • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
    • Printing control and operating system

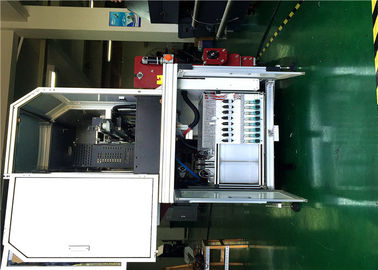

    • Electric systerm
    • Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt, another one beside printhead.

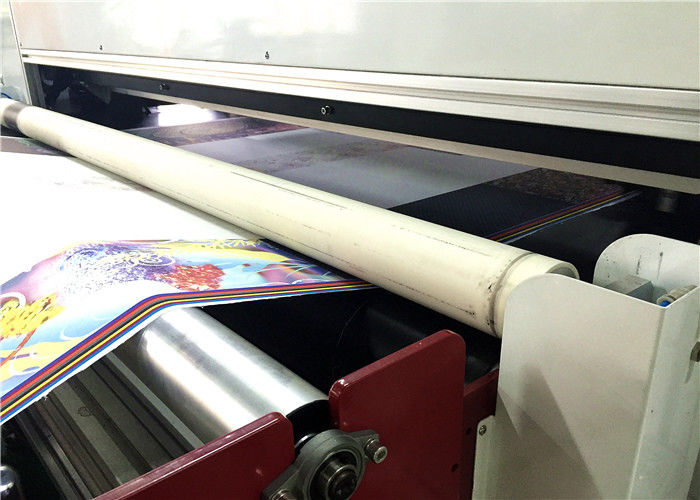

    • Belt-transporting system,integrated fabric feeding & take-up system, fabric spreading , fabric entry unit.

    5) Inks are available for three chemistries:



    --. Reactive inks – suitable for natural fibers such as cotton,silk,wool,etc

    -- Acid inks – suitable for polyamide lycra, wool, silk

    -- Disperse inks – suitable for polyester and blends

    --- -- Pigment - suitable for all kind of fabric



    6) Print applications products:



    Clothes, scarf,cushion,curtain,sofa fabric etc.





    Industrial Digital Textile Printer High Speed Belt Transmission Dryer 20kw







     FAQ:



    1. What’s white ripsoftware?

    Texprint (Europe original)





    2. How much cost for per sqmt?

    Around 0.23USD/m2





    3. How many for ink consumption?

    10-12g/m2







    Why  Us?



    1. High quality and service(pre sales service, insale customer service, after sales technical
    2. Earliest and Most professional core printer manufacturer inChina.15years in digital textile
    3. printing,25years in automatic control system.
    4. support service, and other special service you need)
    5. Wide range spec product for your detailed requirement.
