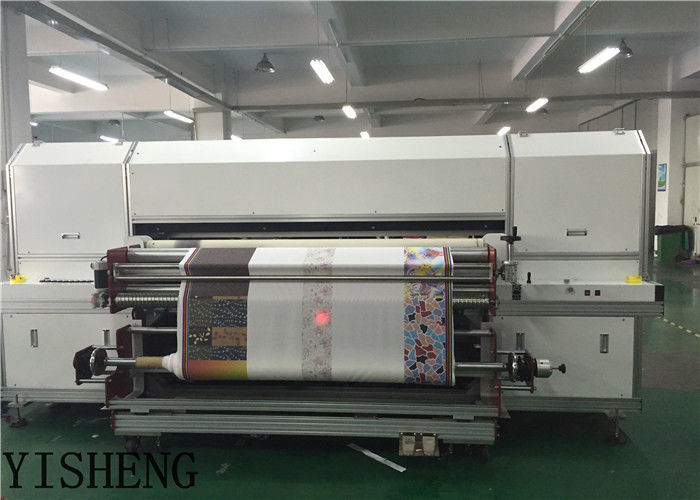

Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm

Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm

    • Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm
    • Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm
    • Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm
    • Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm
    • Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm
  • Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm

    Product Details:

    Certification: ISO ,CE
    Model Number: YS1800/3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Print Head: Eight Kyocera KJ4B-QA06 Max Fabric Width: 1830mm
    Max. Printing Speed: 250m2/hour Drop Size: 5pl ,7pl,12pl.18pl
    Ink Type: Acid ,reactive , Disperse ,or Pigment Drying Way: Aluminum Foil Heater,infrared Heater And Hot Fan Heater
    Fabric Feeder&take Up: Automatic Rolling And Taking Up Printhead Cleaning: Positive Pressure Cleaning And Sweeping Systerm
    Power Consumption: Printer 10kw,dryer 20kw Compressed Air: 0.6m3/min,≧0.7mpa
    High Light:

    digital printing machine

    ,

    large format textile printer

    Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm



    High speed reactive digita textile printing machine for cotton fabric 1800mm





    Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm

    1. Print head:4-16 kyocera KJ4B-QA06
    2. Print speed:250m2/hour
    3. Fabric type:all kind of natural fiber,synthetic fiber,etc.
    4. Direct printing on roll fabric
    5. Fabric max.width 1830mm



    Technical parameter:



    Product mode TLDP-k1800
    Print head 8 Kyocera print head
    Maximum printing width 1830mm
    Medium conveyance mode Guide belt conveyance
    Maximum printing resolution 1200DPI*1200DPI
    Print speed 1 pass 180-250 m2/hour
    2 pass 90-120m2/hour
    3 pass 55-85m2/hour
    Print software Neostampa/Texprint (origin)
    Ink supply system Peristaltic pump supply,degassing NEG pressure system
    Dryer unit Aluminum foil heater,infrared heater and hot fan heater
    Ink color Cyan,Magenta,Yellow,Black,Orange, Red,Blue, Gray
    Print head height Height adjustable(0~50mm) to adapt medium of different thickness
    Print head clean system Positive pressure and wiper
    Power voltage 380V,3-phase-4-wire+G(with independent reliable effective earth wire)
    Power frequency 50HZ/60HZ ±1HZ
    Power consumption Printer 10kw,dryer 20kw
    Printer 4810*2270*2100mm
    Dryer unit 2450*960*1650mm
    Ink box 1280*730*1250mm
    Weight 4420kg
    CBM load in 1x 40 feet container





    Description of printer:



    1) Printhead:

    Printhead: kyocera (Japan original) 4-8pcs,

    First time buy 4 heads,later you can add 2 or 4heads in the same machine,just add

    heads charges.





           2) Print mode & speed:



        2 pass  135m2/hour, 600*1200 dpi

        3 pass  72m2/hour,  600*1800 dpi

        4 pass  54m2/hour, 1200*1200 dpi





    3) Inks are available for three chemistries:



     Reactive inks – suitable for natural fibers such as cotton,silk,wool,etc

     Acid inks – suitable for polyamide lycra, wool, silk

     Disperse inks – suitable for polyester and blends

    Pigment - suitable for all kind of fabric





    4) Main features :



    • Software:TEXPRINT (original) which is widely used in the digital printing industry,  and authoritatively in the world.Because of

            (1) Quickly and accurately parse image

            (2) high color reduction degree,99.99%same as photo

            (3) save ink ( ink consume 10-12g/m2 )

    • Fabric transportation: Habasit industrial belt.Origin from Swiss Habasit.
    • Japan Panasonic servo motor & German speed reducer.
    • Printhead moving guider :Germany
    • operating platform
    • Printing control and operating system
    • Electric systerm
    • Ink supply system:peristaltic pump supply,degassing NEG pressure system.
    • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
    • Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt,another one beside printhead.

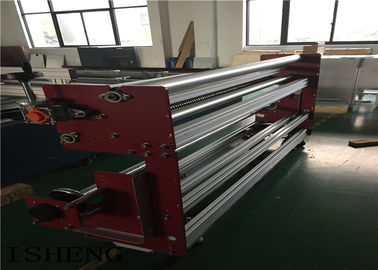

    • Belt-transporting system,integrated fabric feeding & take-up system,fabric spreading ,fabric entry unit.





    Print applications products:



    Clothes, scarf,cushion,curtain,sofa fabric etc.

    Reactive Textile Digital Printing Machines For Cotton Fabric / Cloth 1800mm





     FAQ:
    1. How many for ink consumption?
    10-12g/m2
    2. What’s white ripsoftware?
    Texprint (Europe original)
    3. How much cost for per sqmt?
    around 0.23USD/m2







    Our advantage:




    1. Wide range spec product for your detailed requirement.


    2. Your requirements, what we concern.


    3. High quality and service(pre sales service, insale customer service, after sales technical

    support service, and other special service you need)
