| Certification: | ISO |
| Model Number: | YS1800/3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 20 working days after received deposit |
| Supply Ability: | 10 sets per month |
| Printer Head: | Kyocera Head Four To Eight (optional) | Max. Printing Wide: | 180cm |
|---|---|---|---|
| Speed (printing): | 1 Pass 270m2/h,2 Pass135m2/h | Print Resolution: | 1200*1200 Dpi |
| Fabric Thickness: | Max.fabric 25mm | Pringhead Clean System: | Automactic Cleaning Systerm |
| Ink Suitable: | Acid,reactive,disperse,pigment | ||
| Highlight: | inkjet printing machine,inkjet digital printer |
||

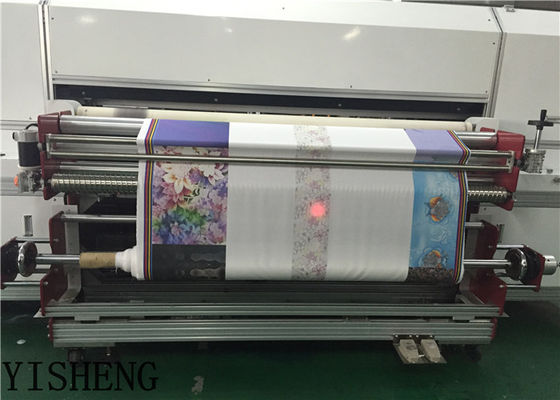

270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing
Fast speed 270m2 / hour fabric inkjet printer cotton digital printing
A. Main specifications:
| Product mode | TLDP-k1800 | |
| Print head | 4 / 6 / 8 Kyocera print head(optional) | |
| Maximum printing width | 1800mm | |
| Maximum printing resolution | 1200DPI*1200DPI | |
| Print speed | 1 pass | 180-250 m2/hour |
| 2 pass | 90-120m2/hour | |
| 3 pass | 55-85m2/hour | |
| Print Rip software | Neostampa / Texprint (origin) | |
| Ink supply system | Peristaltic pump supply,degassing NEG pressure system | |
| Dryer unit | Aluminum foil heater,infrared heater and hot fan heater | |
| Medium output mode | Automatic winding | |
| Ink Type | reactive , disperse or acid ink,pigment | |
| Medium conveyance mode | Guide belt conveyance | |
| Maximum medium length | No limited | |
| Ink color | Cyan,Magenta,Yellow,Black,Orange, Red,Blue, Gray | |
| Print head height | Height adjustable(0～50mm) to adapt medium of different thickness | |
| Print head clean system | Positive pressure and wiper | |
| Power voltage | 380V,3-phase-4-wire+G(with independent reliable effective earth wire) | |
| Power frequency | 50HZ/60HZ ±1HZ | |
| Power consumption | Printer 10kw,dryer 20kw | |
| Printer | 4810*2270*2100mm | |
| Dryer unit | 2450*960*1650mm | |
| Ink box | 1280*730*1250mm | |
| Weight | 4420kg | |
| CBM | 1x 40 feet container | |
B. Description:
1) Features:
- Technology: Kyocera
- Working width: 3230 mm
- Printing Speed:70lm/hr
- No. of heads:4 - 8
- Ink type:Reactive/Disperse/Acid/Pigment
- 24-hour printing
- Daily output: 2400 - 3500
- Vivid colour
- Exquisite sharpness
- Suitable for all fabric types
- Linear guide rail beam
- Separate electric control cabinet
- Separate ink supply system
- Degassing system reduces print head clogging
- Variable drop size (4-38pl) gives perfect clarity
- Bianco fabric feeder & Driver (optional)
- Super dryer (optional)
2) Ink for fabric:
- Acid inks – on polyamide lycra, wool, silk
- Pigment ink - any kind of fabric
- Reactive inks – on all natural fibers such as cotton,silk,wool,etc
- dissperse inks – directly onto polyester and blends
3) Performance:
4) Main parts & systerm:
5) The Advantages of RIP software
C. Our service:
1) Before place order:
We provide a suitable project according to your environment and production capacity.
2) Installation training service:
We dispatch technician to your factory for installation ,testing and training.
3) Quality Guarantee:
The whole set of machine guarantee is 1 year. The print head is half year. We offer flexible extended
warranties if needed.
D. Enviroment request:
1) Temperature is generally controlled at 15~30 ℃ and Humidity at 50%~70%.
2) The machine should be protected from direct radiation of sunshine, strong light, wind or heat source.
3) The surrounding of the machine should be left with sufficient space for normal ventilation.
