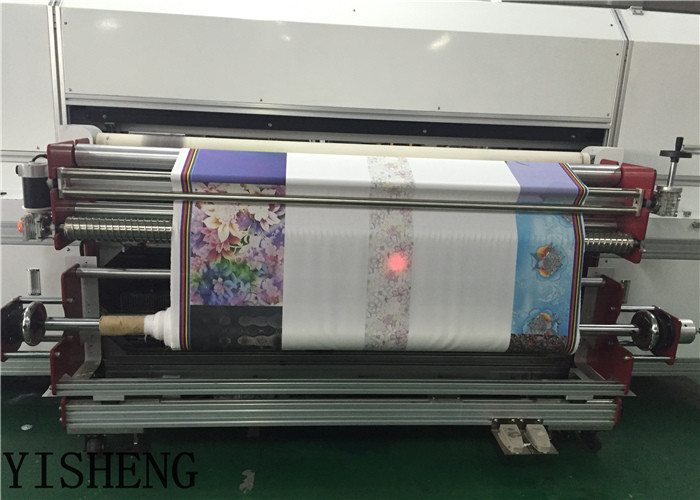

270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing

270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing

    • 270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing
    • 270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing
    • 270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing
  • 270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing

    Product Details:

    Certification: ISO
    Model Number: YS1800/3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Packed in wooden case
    Delivery Time: 20 working days after received deposit
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Printer Head: Kyocera Head Four To Eight (optional) Max. Printing Wide: 180cm
    Speed (printing): 1 Pass 270m2/h,2 Pass135m2/h Print Resolution: 1200*1200 Dpi
    Fabric Thickness: Max.fabric 25mm Pringhead Clean System: Automactic Cleaning Systerm
    Ink Suitable: Acid,reactive,disperse,pigment
    High Light:

    inkjet printing machine

    ,

    inkjet digital printer



    270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing

    Fast speed 270m2 / hour fabric inkjet printer cotton digital printing



    A. Main specifications:

    Product mode TLDP-k1800
    Print head 4 / 6 / 8 Kyocera print head(optional)
    Maximum printing width 1800mm
    Maximum printing resolution 1200DPI*1200DPI
    Print speed 1 pass 180-250 m2/hour
    2 pass 90-120m2/hour
    3 pass 55-85m2/hour
    Print Rip software Neostampa / Texprint (origin)
    Ink supply system Peristaltic pump supply,degassing NEG pressure system
    Dryer unit Aluminum foil heater,infrared heater and hot fan heater
    Medium output mode Automatic winding
    Ink Type  reactive , disperse or acid ink,pigment
    Medium conveyance mode Guide belt conveyance
    Maximum medium length No limited
    Ink color Cyan,Magenta,Yellow,Black,Orange, Red,Blue, Gray
    Print head height Height adjustable(0~50mm) to adapt medium of different thickness
    Print head clean system Positive pressure and wiper
    Power voltage 380V,3-phase-4-wire+G(with independent reliable effective earth wire)
    Power frequency 50HZ/60HZ ±1HZ
    Power consumption Printer  10kw,dryer 20kw
    Printer 4810*2270*2100mm
    Dryer unit 2450*960*1650mm
    Ink box 1280*730*1250mm
    Weight 4420kg
    CBM 1x 40 feet container





    B. Description:



    1) Features:



    - Technology: Kyocera

    - Working width: 3230 mm

    - Printing Speed:70lm/hr

    - No. of heads:4 - 8

    - Ink type:Reactive/Disperse/Acid/Pigment

    - 24-hour printing

    - Daily output: 2400 - 3500

    - Vivid colour

    - Exquisite sharpness

    - Suitable for all fabric types

    - Linear guide rail beam

    - Separate electric control cabinet

    - Separate ink supply system

    - Degassing system reduces print head clogging

    - Variable drop size (4-38pl) gives perfect clarity

    - Bianco fabric feeder & Driver (optional)

    - Super dryer (optional)





    2) Ink for fabric:



    - Acid inks – on polyamide lycra, wool, silk

    - Pigment ink - any kind of fabric

    - Reactive inks –  on all natural fibers such as cotton,silk,wool,etc

    - dissperse inks –  directly onto polyester and blends



    3) Performance:



    270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing270 m2 / Hour Digital Printing Machines For Fabrics / Cotton Digital Printing





         4) Main parts & systerm:

    • Printhead:Kyocera  Japan
    • Rip Software:TEXPRINT
    • Servo motor Japan Panasonic& speed reducer German .
    • Fabric transportation:  SwissHabasit industrial belt.
    • Germany printhead moving guider .
    • Machine body ,operating platform
    • Printing control and operating system
    • Ink supply system
    • Belt cleaning systerm
    • Fabric feeding and taking up systerm
    • Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt,another one beside printhead.
    • Belt-transporting system,integrated fabric feeding & take-up system,fabric spreading ,fabric entry unit.
    • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
    • Ink supply:peristaltic pump supply,degassing NEG pressure system



     5) The Advantages of RIP software



    •  Accurately control the ink volume when printer work, so that the printed image exactly as same as the designs prepared
    • Freely adjust the brightness, contrast, etc by RIP according to your request



    C. Our service:





    1) Before place order:



     We provide a suitable project according to your environment and production capacity.





    2) Installation training service:



     We dispatch technician to your factory for installation ,testing and training.





    3) Quality Guarantee:



     The whole set of machine guarantee is 1 year. The print head is half year. We offer flexible extended

     warranties if needed.







    D. Enviroment request:





    1) Temperature is generally controlled at 15~30 ℃ and Humidity at 50%~70%.



    2) The machine should be protected from direct radiation of sunshine, strong light, wind or heat source.



    3) The surrounding of the machine should be left with sufficient space for normal ventilation.
